Fabric Ul Vertical Flame Test Chamber Standard UL94 GB/T2408 Smoke Emission Test

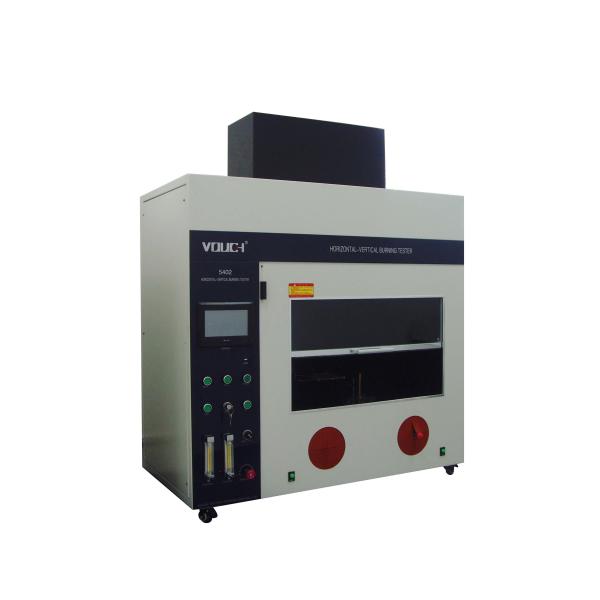

Description :5402 material horizontal-vertical burner tester

Horizontal vertical burner tester is a new burn function test machine launch directed against UL-94 .It has import control instrument,new test circuit ,steady function reliable,and easy operated,use data widely adjusted ,it’s a desirable test machine for manufactory,research institutes,college institutes.

Features:

1. in accordance with newest test standard
2. import control component
3. case with 2mm baking varnishing inner and outerside of cold panel
4. good quality aluminum anodising special clamp
5. colour touch screen controller ,test formula selected directly
6. PLC formula control,one touch one person operate independently
7. Liner bearing with ni-cr optic axis transmission design
8. Silent design armoured glass sliding window
9. With Hand operation entry

Standard : UL 94 GB2408 IEC60695-11 ISO 1210 IEC60707

Technology data:

1. test project:HB V HBF 5V VTM several methods can be select
2. size:1200*600*1120mm
3. inner case volume:0.75 cubic meter
4. flame height adjust:10-200mm
5. flow rate of flame adjust:100-1000mm/min
6. flame differential pressure adjust:5-200mm water column
7. flame angle adjust:0-45degree
8. burn height adjust:50mm
9. sample vertical move distance:450mm
10. sample horizontal move distance:180mm
11. burning time adjust range:0-99.99s
12. residual flame,residual combustion timing range:0.0s~999.9s
13. burning time chronoscope resolution :0.01s
14. residual flame,residual burning time resolution:0.1s
15. background inner case:black (power baking varnish)

Standard configure:

1.)flame height adjust devie by 1pcs

2.)horizontal burn test clamp by 1pcs

3.)vertical burn test clamp by 1 pcs

4.)pallet by 1pcs
